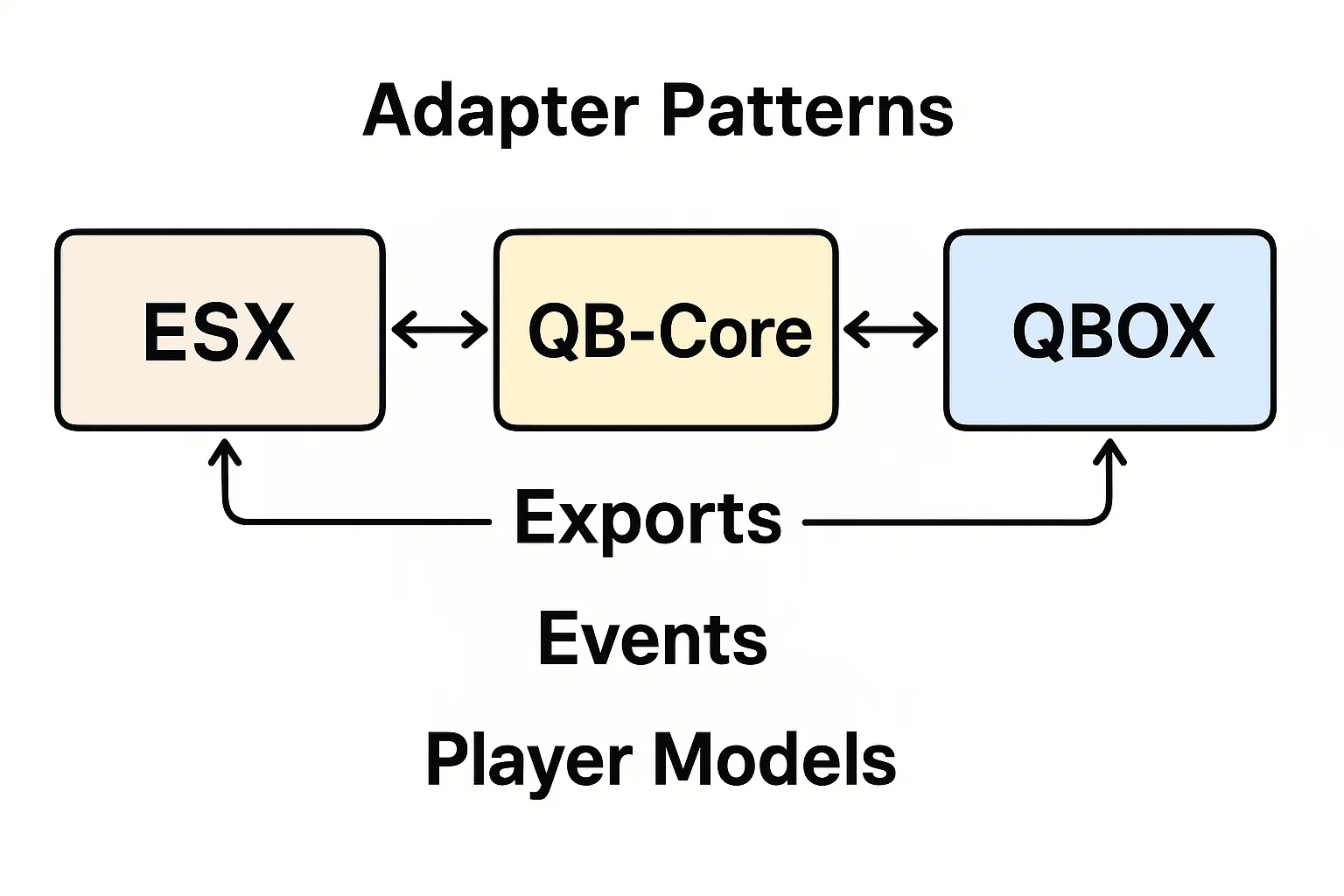

Adapter Patterns: ESX↔QBCore↔QBOX (Exports, Events &a…

This is a FiveM Framework Adapter – for scripters. Ship one resource that runs on ESX, QBCore, and QBOX by isolating framework‑specific calls behind a thin adapter. Drop the shared/fw.lua and per‑framework adapters below into any resource, call the stable interface contract (FW.Player, FW.Job, FW.Money, FW.Inv, FW.Events), and keep business logic framework‑agnostic. A small test matrix with stubs catches mismatches before you deploy.

Why an Adapter?

Framework differences cluster around the same seams:

Core access (ESX getSharedObject, QBCore GetCoreObject, QBOX exports only)
Player model (xPlayer vs Player/PlayerData)
Identifiers (license/steam vs citizenid)
Money & inventory APIs
Event names at load/login/job‑update time

A unified interface keeps these seams out of your game logic. You swap the adapter, not the codebase.

BTW: You can use our written adapter here, for free:

Framework Adapter

How to Use (Drop‑in)

Tree (suggested):

text

my-resource/
├─ fxmanifest.lua
├─ shared/
│  ├─ adapters/
│  │  ├─ esx.lua
│  │  ├─ qb.lua
│  │  └─ qbox.lua
│  └─ fw.lua
├─ server/
│  └─ main.lua
└─ client/
   └─ main.lua

fxmanifest.lua (load adapters first, then fw.lua so detection can bind):

text

fx_version 'cerulean'
game 'gta5'
lua54 'yes'

shared_scripts {
  'shared/adapters/*.lua',
  'shared/fw.lua'
}

client_scripts {
  'client/*.lua'
}

server_scripts {
  '@oxmysql/lib/MySQL.lua', -- optional: if you use SQL
  'server/*.lua'
}

In your code (server or client):

text

-- use the stable interface everywhere
local src = source
local p = FW.Player.getBySrc(src)
local job = FW.Job.getName(p)
FW.Money.add(p, 'cash', 250, 'delivery-bonus')
FW.Inv.addItem(p, 'water', 1)
FW.Events.notify(src, 'Job bonus paid.', 'success')

The only symbol you depend on is FW. Everything else is internal to the adapters.

Interface Contract (stable surface)

Design goal: Small, explicit, documented. These are the functions you can rely on across frameworks.

`FW.meta`

name() -> 'esx'|'qbcore'|'qbox'
has(resourceName: string) -> boolean (resource started?)

`FW.Player`

getBySrc(src: number) -> any (framework player handle)
getStateId(p) -> string (ESX: identifier; QB/QBOX: citizenid)
getServerId(p) -> number (numeric id)
getName(p) -> string

`FW.Job`

getName(p) -> string
getGrade(p) -> number|string
onChange(handler(src, oldJob, newJob)) (fires when job changes, if detectable)

`FW.Money`

get(p, account: 'cash'|'bank'|'black_money'?) -> number
add(p, account, amount: number, reason?: string)
remove(p, account, amount: number, reason?: string)

`FW.Inv` (best‑effort; see Notes)

addItem(p, name: string, count: number, metadata?: table) -> boolean
removeItem(p, name: string, count: number, metadata?: table) -> boolean

Inventory note: servers vary (qb-inventory, ox_inventory, qs‑inventory, etc.). The default implementation uses framework inventory when available and falls back to ox_inventory if detected.

`FW.Events`

notify(target: number, msg: string, type?: 'info'|'success'|'error')
onPlayerLoaded(handler(src)) (best‑effort, with fallback via playerJoining)

Drop‑in Adapters (copy/paste)

These are pragmatic defaults. If your fork differs (especially for QBOX), adjust the few marked comments.

`shared/fw.lua`

text

-- framework bridge bootstrap
FW = FW or {}

local function started(name)
  local st = GetResourceState(name)
  return st == 'started' or st == 'starting'
end

local which
if started('qbx_core') then which = 'qbox'
elseif started('qb-core') then which = 'qbcore'
elseif started('es_extended') then which = 'esx' end

if which == 'qbcore' then
  FW = Adapters.qb()
elseif which == 'qbox' then
  FW = Adapters.qbox()
elseif which == 'esx' then
  FW = Adapters.esx()
else
  error('[FW] No supported framework found (es_extended / qb-core / qbx_core).')
end

-- tiny helpers common to all adapters
function FW.meta.has(res)
  return started(res)
end

`shared/adapters/esx.lua`

text

Adapters = Adapters or {}

Adapters.esx = function()
  local ESX = exports['es_extended']:getSharedObject()

  local M = {
    meta = { name = function() return 'esx' end },
    Player = {}, Job = {}, Money = {}, Inv = {}, Events = {}
  }

  -- Player
  function M.Player.getBySrc(src) return ESX.GetPlayerFromId(src) end
  function M.Player.getStateId(p) return p.identifier end
  function M.Player.getServerId(p) return p.source end
  function M.Player.getName(p) return p.getName and p.getName() or GetPlayerName(p.source) end

  -- Job
  function M.Job.getName(p) return (p.getJob and p.getJob().name) or (p.job and p.job.name) end
  function M.Job.getGrade(p)
    local j = p.getJob and p.getJob() or p.job
    return j and (j.grade or (j.grade and j.grade.grade))
  end
  function M.Job.onChange(handler)
    -- ESX fires when job changes (commonly 'esx:setJob')
    RegisterNetEvent('esx:setJob', function(job)
      local src = source
      handler(src, nil, job and job.name)
    end)
  end

  -- Money
  local function norm(account) return account == 'cash' and 'money' or account end
  function M.Money.get(p, account)
    account = norm(account)
    if account == 'money' then return p.getMoney() end
    local acc = p.getAccount and p.getAccount(account)
    return acc and acc.money or 0
  end
  function M.Money.add(p, account, amount)
    account = norm(account)
    if account == 'money' then p.addMoney(amount) else p.addAccountMoney(account, amount) end
  end
  function M.Money.remove(p, account, amount)
    account = norm(account)
    if account == 'money' then p.removeMoney(amount) else p.removeAccountMoney(account, amount) end
  end

  -- Inventory (ESX native, with ox fallback)
  local hasOX = GetResourceState('ox_inventory') == 'started'
  if hasOX then
    function M.Inv.addItem(p, name, count, meta) return exports.ox_inventory:AddItem(p.source, name, count, meta) end
    function M.Inv.removeItem(p, name, count, meta) return exports.ox_inventory:RemoveItem(p.source, name, count, meta) end
  else
    function M.Inv.addItem(p, name, count) p.addInventoryItem(name, count); return true end
    function M.Inv.removeItem(p, name, count) p.removeInventoryItem(name, count); return true end
  end

  -- Events
  function M.Events.notify(target, msg, kind)
    kind = kind or 'info'
    -- Implement your UI notify event here. Example placeholder:
    TriggerClientEvent('fw:notify', target, msg, kind)
  end
  function M.Events.onPlayerLoaded(handler)
    RegisterNetEvent('esx:playerLoaded', function(_)
      handler(source)
    end)
  end

  return M
end

`shared/adapters/qb.lua` (QBCore)

text

Adapters = Adapters or {}

Adapters.qb = function()
  local QBCore = exports['qb-core']:GetCoreObject()

  local M = {
    meta = { name = function() return 'qbcore' end },
    Player = {}, Job = {}, Money = {}, Inv = {}, Events = {}
  }

  -- Player
  function M.Player.getBySrc(src) return QBCore.Functions.GetPlayer(src) end
  function M.Player.getStateId(p) return p.PlayerData.citizenid end
  function M.Player.getServerId(p) return p.PlayerData.source end
  function M.Player.getName(p)
    local pd = p.PlayerData
    return (pd.charinfo and (pd.charinfo.firstname .. ' ' .. pd.charinfo.lastname)) or GetPlayerName(pd.source)
  end

  -- Job
  function M.Job.getName(p) return p.PlayerData.job.name end
  function M.Job.getGrade(p)
    local g = p.PlayerData.job.grade
    return type(g) == 'table' and (g.level or g.grade) or g
  end
  function M.Job.onChange(handler)
    -- QBCore client event relays job update; mirror serverside via simple relay if needed.
    RegisterNetEvent('QBCore:Server:OnJobUpdate', function(job)
      handler(source, nil, job and job.name)
    end)
  end

  -- Money
  function M.Money.get(p, account) return p.PlayerData.money[account] or 0 end
  function M.Money.add(p, account, amount, reason) p.Functions.AddMoney(account, amount, reason or 'fw') end
  function M.Money.remove(p, account, amount, reason) p.Functions.RemoveMoney(account, amount, reason or 'fw') end

  -- Inventory (qb-inventory or ox)
  local hasOX = GetResourceState('ox_inventory') == 'started'
  if hasOX then
    function M.Inv.addItem(p, name, count, meta) return exports.ox_inventory:AddItem(p.PlayerData.source, name, count, meta) end
    function M.Inv.removeItem(p, name, count, meta) return exports.ox_inventory:RemoveItem(p.PlayerData.source, name, count, meta) end
  else
    function M.Inv.addItem(p, name, count, meta) return p.Functions.AddItem(name, count, false, meta) end
    function M.Inv.removeItem(p, name, count) return p.Functions.RemoveItem(name, count) end
  end

  -- Events
  function M.Events.notify(target, msg, kind)
    TriggerClientEvent('fw:notify', target, msg, kind or 'info')
  end
  function M.Events.onPlayerLoaded(handler)
    RegisterNetEvent('QBCore:Server:PlayerLoaded', function()
      handler(source)
    end)
  end

  return M
end

`shared/adapters/qbox.lua` (QBOX / qbx_core)

text

Adapters = Adapters or {}

Adapters.qbox = function()
  -- QBOX typically exposes functions via exports only.
  -- If your fork also ships a GetCoreObject, swap accordingly.
  local QBX = exports['qbx_core']

  local M = {
    meta = { name = function() return 'qbox' end },
    Player = {}, Job = {}, Money = {}, Inv = {}, Events = {}
  }

  -- Player (QBOX uses Player with PlayerData similar to QBCore)
  function M.Player.getBySrc(src) return QBX:GetPlayer(src) end -- adjust if your API differs
  function M.Player.getStateId(p) return p.PlayerData.citizenid end
  function M.Player.getServerId(p) return p.PlayerData.source end
  function M.Player.getName(p)
    local pd = p.PlayerData
    return (pd.charinfo and (pd.charinfo.firstname .. ' ' .. pd.charinfo.lastname)) or GetPlayerName(pd.source)
  end

  -- Job
  function M.Job.getName(p) return p.PlayerData.job.name end
  function M.Job.getGrade(p)
    local g = p.PlayerData.job.grade
    return type(g) == 'table' and (g.level or g.grade) or g
  end
  function M.Job.onChange(handler)
    -- Some QBOX builds forward QBCore job events; if not, wire your own when setting jobs.
    RegisterNetEvent('QBCore:Server:OnJobUpdate', function(job)
      handler(source, nil, job and job.name)
    end)
  end

  -- Money
  function M.Money.get(p, account) return p.PlayerData.money[account] or 0 end
  function M.Money.add(p, account, amount, reason)
    if p.Functions and p.Functions.AddMoney then p.Functions.AddMoney(account, amount, reason or 'fw')
    else QBX:AddMoney(p.PlayerData.source, account, amount, reason or 'fw') end
  end
  function M.Money.remove(p, account, amount, reason)
    if p.Functions and p.Functions.RemoveMoney then p.Functions.RemoveMoney(account, amount, reason or 'fw')
    else QBX:RemoveMoney(p.PlayerData.source, account, amount, reason or 'fw') end
  end

  -- Inventory (ox preferred on many QBOX servers)
  local hasOX = GetResourceState('ox_inventory') == 'started'
  if hasOX then
    function M.Inv.addItem(p, name, count, meta) return exports.ox_inventory:AddItem(p.PlayerData.source, name, count, meta) end
    function M.Inv.removeItem(p, name, count, meta) return exports.ox_inventory:RemoveItem(p.PlayerData.source, name, count, meta) end
  else
    -- fall back to qb-style if present
    if p and p.Functions and p.Functions.AddItem then
      function M.Inv.addItem(p, name, count, meta) return p.Functions.AddItem(name, count, false, meta) end
      function M.Inv.removeItem(p, name, count) return p.Functions.RemoveItem(name, count) end
    else
      function M.Inv.addItem() return false end
      function M.Inv.removeItem() return false end
    end
  end

  -- Events
  function M.Events.notify(target, msg, kind)
    TriggerClientEvent('fw:notify', target, msg, kind or 'info')
  end
  function M.Events.onPlayerLoaded(handler)
    -- Some QBOX builds reuse QBCore load events; if yours differs, relay from your login logic.
    RegisterNetEvent('QBCore:Server:PlayerLoaded', function()
      handler(source)
    end)
  end

  return M
end

Usage Examples

1) Paying a job bonus

text

RegisterNetEvent('myres:payBonus', function()
  local src = source
  local p = FW.Player.getBySrc(src)
  if not p then return end

  if FW.Job.getName(p) == 'delivery' then
    FW.Money.add(p, 'cash', 250, 'delivery-bonus')
    FW.Events.notify(src, 'Bonus paid (+$250).', 'success')
  else
    FW.Events.notify(src, 'You are not on duty as Delivery.', 'error')
  end
end)

2) Inventory grant with ox fallback already handled

text

local function giveStarter(src)
  local p = FW.Player.getBySrc(src)
  if p then FW.Inv.addItem(p, 'water', 2) end
end
FW.Events.onPlayerLoaded(giveStarter)

Anti‑Pattern Catalog (and Fixes)

Anti‑pattern	Why it bites	Fix with adapter
Hard‑coding core object (`ESX = exports['es_extended']:getSharedObject()` scattered everywhere)	Locks you into ESX, tedious to migrate	Only call `FW.*`. Core resolution lives in adapter.
Storing framework player handle long‑term (e.g., keep `xPlayer` in a table forever)	Handles can go stale; references differ per framework	Re‑fetch via `FW.Player.getBySrc(src)` when you act, or cache by `getStateId` key and re‑resolve.
Assuming identifiers are the same (ESX `identifier` vs QB/QBOX `citizenid`)	Breaks DB relations/migrations	Use `FW.Player.getStateId(p)` and a crosswalk table during migrations.
Direct event names in business logic (`esx:playerLoaded`, `QBCore:Server:PlayerLoaded`)	Fragile across forks	Subscribe via `FW.Events.onPlayerLoaded`.
Mixed inventory assumptions	Servers swap inventories often	Use `FW.Inv.*` which detects `ox_inventory` first, then framework.
SQL schemas frozen to one framework	`accounts`, `identifier`, etc. diverge	Use neutral columns (`state_id`, `money_cash`, `money_bank`) and migration helpers below.

SQL & Identifier Migration Notes (Quick Reference)

Primary person key:
- ESX → identifier (license/steam)
- QB/QBOX → citizenid
- Neutral key in your tables: state_id (string). Store FW.Player.getStateId(p).
- Money:
  - ESX: money (cash), accounts.bank, accounts.black_money
  - QB/QBOX: PlayerData.money.cash|bank
  - Minimal crosswalk (one‑time backfill):

text

-- Example: populate your neutral key from ESX users
UPDATE my_table t
JOIN users u ON u.identifier = t.identifier
SET t.state_id = u.identifier
WHERE t.state_id IS NULL;

-- Example: migrate to QB/QBOX where you have a mapping table esx_identifier→citizenid
UPDATE my_table t
JOIN id_map m ON m.esx_identifier = t.state_id
SET t.state_id = m.citizenid
WHERE m.citizenid IS NOT NULL;

Keep the crosswalk (id_map) only during the transition; future writes should always use state_id.

Testing Matrix & CI: Validate a Script Across Frameworks

You don’t need to boot a full CFX server in CI to catch most adapter issues. Stub exports and run unit tests for the contract surface.

1) Minimal test (Busted)

tests/fw_spec.lua

text

local function makeStub(framework)
  _G.Adapters = {}
  if framework == 'esx' then
    _G.exports = { ['es_extended'] = { getSharedObject = function()
      return {
        GetPlayerFromId = function(src)
          return {source = src, identifier = 'license:abc', getMoney = function() return 100 end,
                  addMoney = function() end, removeMoney = function() end,
                  getJob = function() return {name='mechanic', grade=2} end,
                  addAccountMoney=function() end, removeAccountMoney=function() end,
                  addInventoryItem=function() end, removeInventoryItem=function() end,
                  getName=function() return 'Alex ESX' end }
        end
      }
    end } }
    _G.GetResourceState = function(n) return n=='es_extended' and 'started' or 'missing' end
    dofile('shared/adapters/esx.lua')
  elseif framework == 'qbcore' then
    _G.exports = { ['qb-core'] = { GetCoreObject = function()
      return { Functions = { GetPlayer=function(src)
        return { PlayerData={source=src,citizenid='CITZ123',job={name='mechanic',grade=2},
                              money={cash=100,bank=500},charinfo={firstname='Alex',lastname='QB'}},
                 Functions={AddMoney=function() end, RemoveMoney=function() end, AddItem=function() return true end, RemoveItem=function() return true end} }
      end } }
    end } }
    _G.GetResourceState = function(n) return n=='qb-core' and 'started' or 'missing' end
    dofile('shared/adapters/qb.lua')
  elseif framework == 'qbox' then
    _G.exports = { ['qbx_core'] = setmetatable({}, { __index = function()
      return function(name) end
    end }) }
    _G.GetResourceState = function(n) return n=='qbx_core' and 'started' or 'missing' end
    dofile('shared/adapters/qbox.lua')
  end
  dofile('shared/fw.lua')
end

describe('FW contract', function()
  it('resolves player and money (esx)', function()
    makeStub('esx')
    assert.are.equal('esx', FW.meta.name())
    local p = FW.Player.getBySrc(1)
    assert.are.equal('license:abc', FW.Player.getStateId(p))
    assert.are.equal(100, FW.Money.get(p, 'cash'))
  end)

  it('resolves player and money (qbcore)', function()
    makeStub('qbcore')
    assert.are.equal('qbcore', FW.meta.name())
    local p = FW.Player.getBySrc(2)
    assert.are.equal('CITZ123', FW.Player.getStateId(p))
    assert.are.equal(100, FW.Money.get(p, 'cash'))
  end)
end)

2) GitHub Actions (luacheck + busted)

.github/workflows/lua.yml

text

name: Lua CI
on: [push, pull_request]
jobs:
  test:
    runs-on: ubuntu-latest
    strategy:
      matrix:
        lua: [ '5.4' ]
    steps:
      - uses: actions/checkout@v4
      - name: Install Lua & LuaRocks
        uses: leafo/gh-actions-lua@v10
        with: { luaVersion: ${{ matrix.lua }} }
      - name: Install rocks
        uses: leafo/gh-actions-luarocks@v4
      - run: luarocks install luacheck
      - run: luarocks install busted
      - name: Lint
        run: luacheck . --no-color --codes
      - name: Test
        run: busted -v

.luacheckrc (baseline)

text

std = 'lua54'
unused_args = false
max_line_length = 140
ignore = { '211', '212' } -- adjust for your style

For full integration tests, spin up your dev server once and smoke‑test with a tiny command set. CI stubs are sufficient to catch surface breaks.

Implementation Checklist

Drop shared/adapters/*.lua and shared/fw.lua into your resource
Replace all direct ESX/QBCore/QBOX calls in your code with FW.*
Keep only one persistence key: state_id in your tables
Configure inventory preference (ox first by default)
Add CI (luacheck + busted) and a minimal test for each call you use
Document any local deviations (fork‑specific events) at the top of your adapter file

Frequently Extended Surface (optional add‑ons)

FW.Duty.set(p, true|false) – wrap your duty toggles
FW.Permissions.has(src, aceOrGroup) – centralize admin/group checks
FW.Vehicle.spawn(model, coords) – hide framework spawn helpers

Keep the core contract tiny; put optional helpers in a separate module.

Tri‑way Mapping Quick Table

Concern	ESX	QBCore	QBOX (typical)
Core access	`exports['es_extended']:getSharedObject()`	`exports['qb-core']:GetCoreObject()`	No global; exports on `qbx_core`
Player by src	`ESX.GetPlayerFromId(src)`	`QBCore.Functions.GetPlayer(src)`	`exports.qbx_core:GetPlayer(src)` (adjust if forked)
Identifier	`xPlayer.identifier`	`PlayerData.citizenid`	`PlayerData.citizenid`
Money add	`addMoney` / `addAccountMoney`	`Functions.AddMoney`	`Functions.AddMoney` or `exports.qbx_core:AddMoney`
Job name	`xPlayer.job.name`	`PlayerData.job.name`	`PlayerData.job.name`
Player loaded event	`esx:playerLoaded`	`QBCore:Server:PlayerLoaded`	Often reuses QBCore events; fork‑specific

When in doubt on QBOX, inspect your fork’s qbx_core exports and wire accordingly.

Final Notes

Keep adapters boring: no side effects, no database calls.
Treat framework handles as opaque; extract what you need through the contract.
When you must diverge for a client, copy the adapter, not your business logic.

Adapter Patterns: ESX, QBCore & QBOX (Exports, Events & APIs)

Why an Adapter?

How to Use (Drop‑in)

Interface Contract (stable surface)

`FW.meta`

`FW.Player`

`FW.Job`

`FW.Money`

`FW.Inv` (best‑effort; see Notes)

`FW.Events`

Drop‑in Adapters (copy/paste)

`shared/fw.lua`

`shared/adapters/esx.lua`

`shared/adapters/qb.lua` (QBCore)

`shared/adapters/qbox.lua` (QBOX / qbx_core)

Usage Examples

1) Paying a job bonus

2) Inventory grant with ox fallback already handled

Anti‑Pattern Catalog (and Fixes)

SQL & Identifier Migration Notes (Quick Reference)

Testing Matrix & CI: Validate a Script Across Frameworks

1) Minimal test (Busted)

2) GitHub Actions (luacheck + busted)

Implementation Checklist

Frequently Extended Surface (optional add‑ons)

Tri‑way Mapping Quick Table

Final Notes

Stay in the Loop

Why an Adapter?

How to Use (Drop‑in)

Interface Contract (stable surface)

FW.meta

FW.Player

FW.Job

FW.Money

FW.Inv (best‑effort; see Notes)

FW.Events

Drop‑in Adapters (copy/paste)

shared/fw.lua

shared/adapters/esx.lua

shared/adapters/qb.lua (QBCore)

shared/adapters/qbox.lua (QBOX / qbx_core)

Usage Examples

1) Paying a job bonus

2) Inventory grant with ox fallback already handled

Anti‑Pattern Catalog (and Fixes)

SQL & Identifier Migration Notes (Quick Reference)

Testing Matrix & CI: Validate a Script Across Frameworks

1) Minimal test (Busted)

2) GitHub Actions (luacheck + busted)

Implementation Checklist

Frequently Extended Surface (optional add‑ons)

Tri‑way Mapping Quick Table

Final Notes

Stay in the Loop

`FW.meta`

`FW.Player`

`FW.Job`

`FW.Money`

`FW.Inv` (best‑effort; see Notes)

`FW.Events`

`shared/fw.lua`

`shared/adapters/esx.lua`

`shared/adapters/qb.lua` (QBCore)

`shared/adapters/qbox.lua` (QBOX / qbx_core)
